Supported Hardware
Device compatibility matrix for GhostESP features
On this page
Overview
GhostESP runs on a variety of ESP32 boards with varying feature support. This compatibility matrix helps you identify which features are built in or preconfigured for each release build.
Compatibility Matrix
No boards match the selected filters.
| Board | Bluetooth | NFC (PN532) | NFC (Chameleon) | IR TX | IR RX | GPS Default | Keyboard | Display | SD Default | OTA | Native SD Apps |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CYD2USB | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| CYDMicroUSB | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| CYDDualUSB | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| CYD2432S028R | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| CYD 2.4″ variants | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| Waveshare 7″ | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | ✓ | ✓ |
| Crowtech 7″ | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | Manual | ✗ |
| Sunton 7″ | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | ✓ | ✗ |
| Cardputer | ✓ | ✗ | ✓ | ✓ | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ |
| Cardputer ADV | ✓ | ✗ | ✓ | ✓ | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ |
| MarauderV4 | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | ✓ | ✗ |
| Marauder V8 | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✓ |
| Marauder Pancake | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✓ |
| MarauderV6 | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | Manual | ✗ |
| AwokMini | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | Manual | ✗ |
| Awok V5 | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✗ | Manual | ✗ |
| T-Dongle-S3 | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ | ✗ |
| T-Dongle-C5 | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ |
| T-Display S3 Touch | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| S3TWatch | ✓ | ✗ | ✓ | ✓ | ✗ | ✗ | ✗ | ✓ | has 4MB vfs partition | ✓ | ✗ |
| TEmbed C1101 | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ |
| Banshee | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✓ | ✓ | Updater + peer | ✓ |
| GhostBoard | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| Poltergeist | ✓ | ✗ | ✓ | ✓ | ✓ | ✗ | ✗ | Status Display | ✓ | Manual | ✗ |
| T-Deck | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ | Manual | ✓ |
| JCMK DevBoardPro | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | Manual | ✗ |
| RabbitLabs Minion | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✗ | Manual | ✗ |
| Lolin S3 Pro | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✓ |
| XIAO ESP32-S3 Sense | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✓ | ✗ | ✓ | ✓ | ✓ |
| XIAO ESP32-C5 | ✓ | ✗ | ✓ | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | Manual | ✓ |
| Flipper JCMK GPS | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32 (generic) | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32-S2 (generic) | ✗ | ✗ | ✗ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32-C3 (generic) | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32-S3 (generic) | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32-C5 (generic) | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| ESP32-C6 (generic) | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | ✗ | ✓ | Manual | ✗ |
| Heltec V3 | ✓ | ✗ | ✓ | ✗ | ✗ | ✓ | ✗ | Status Display | ✓ | Manual | ✗ |
OTA: ✓ means the release build uses a dual-partition OTA layout. Updater + peer means Banshee uses the C5 updater app for its display MCU and GhostLink peer update for the S3. Manual means USB/manual flashing is required for that release build.
Native SD Apps: ✓ means the release build supports loading native .gapp apps from SD.
GPS Default / SD Default: these columns describe the release build’s default or known board wiring. GPS and SD card pins can be configured at runtime on most builds, so ✗ does not mean the feature is impossible on custom wiring.
Camera Support
- XIAO ESP32-S3 Sense currently has the dedicated camera-enabled build and supports the Motion Detector feature.
- The current motion detector implementation uses QQVGA grayscale capture for low RAM usage and fast comparisons.
- XIAO ESP32-C5 is a supported board config, but it does not include the onboard camera motion detector path used by the S3 Sense build.
Vendor Boards
The following table lists the vendor-specific boards supported by GhostESP with their corresponding build names:
| Board Name | Build Name | Image |
|---|---|---|
| CYDMicroUSB | CYDMicroUSB.zip | |
| CYDDualUSB | CYDDualUSB.zip | |

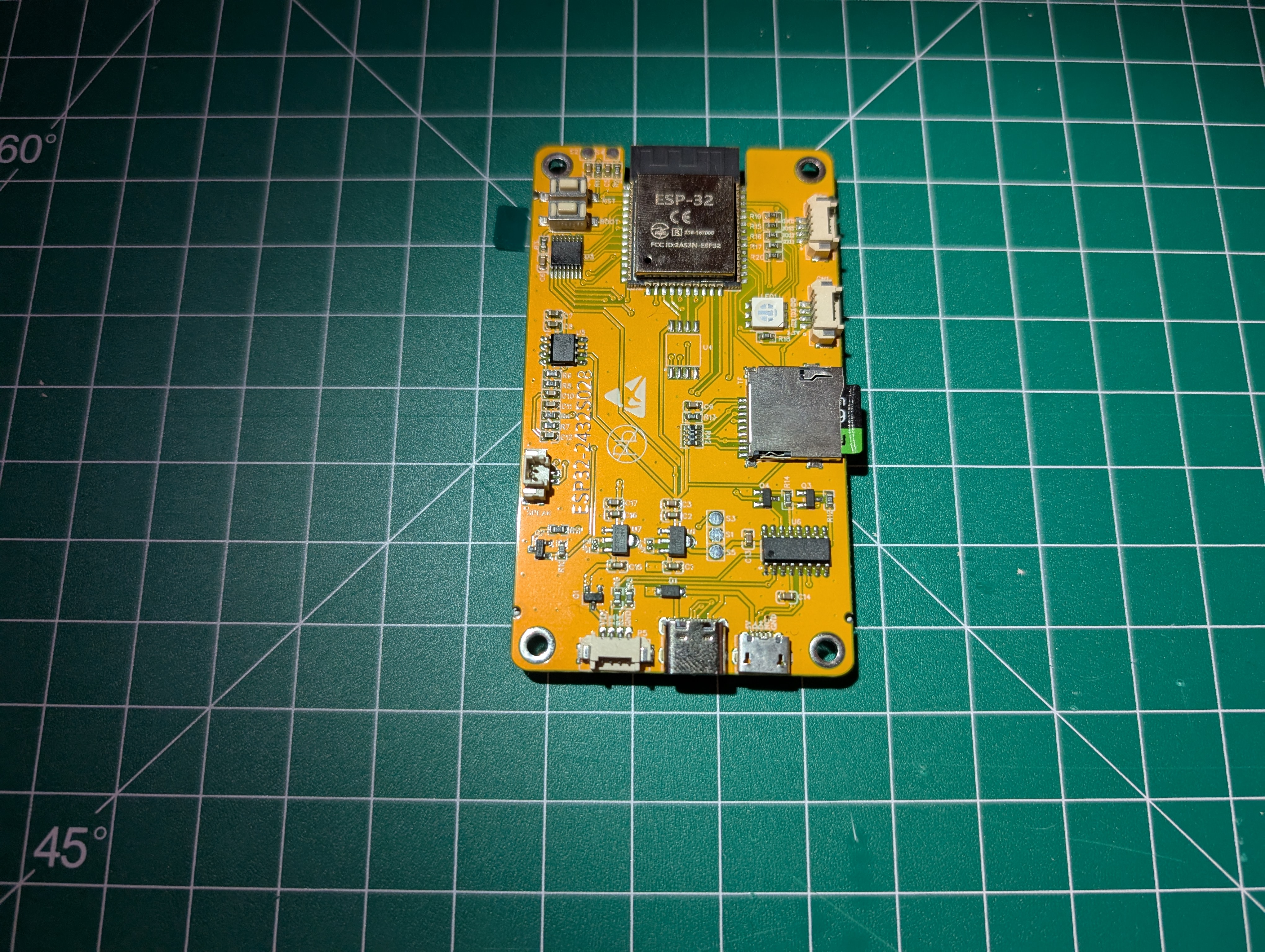

| CYD2432S028R | CYD2432S028R.zip |  |
| Waveshare 7″ | Waveshare_LCD.zip | |
| Crowtech 7″ | Crowtech_LCD.zip | |
| Sunton 7″ | Sunton_LCD.zip | |

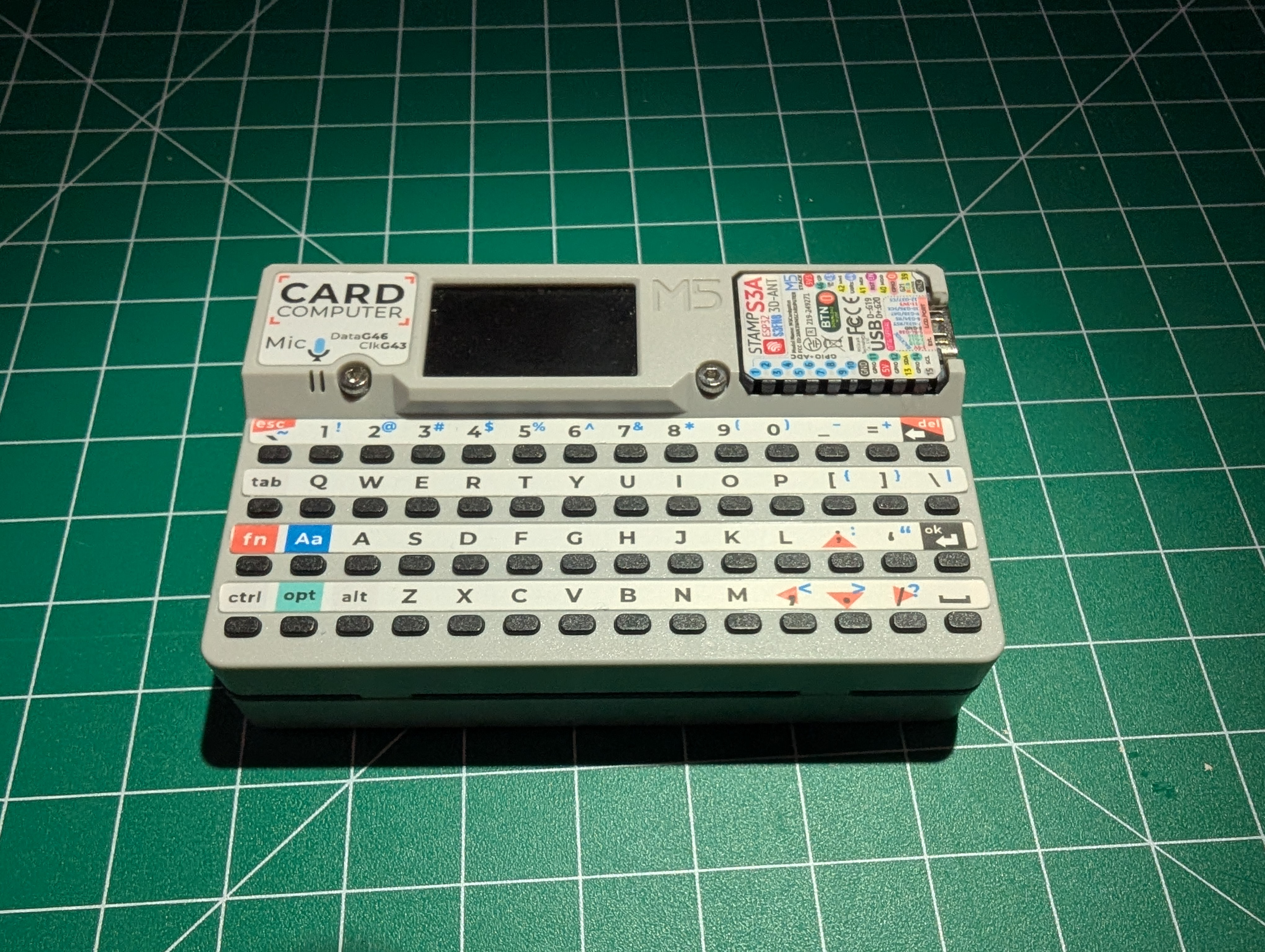

| Cardputer | ESP32-S3-Cardputer.zip |  |
| Cardputer ADV | CardputerADV.zip | |
| MarauderV4 | MarauderV4_FlipperHub.zip | |
| Marauder V8 | MarauderV8.zip | |
| Marauder Pancake | MarauderPancake.zip | |
| MarauderV6 & AwokDual | MarauderV6_AwokDual.zip | |
| AwokMini | AwokMini.zip | |
| Awok V5 | esp32v5_awok.zip | |
| LilyGo T-Dongle-S3 | LilyGo-TDongleS3.zip | |
| LilyGo T-Dongle-C5 | LilyGo-TDongleC5.zip | |
| T-Display S3 Touch | LilyGo-TDisplayS3-Touch.zip | |
| S3TWatch | LilyGo-S3TWatch-2020.zip | |

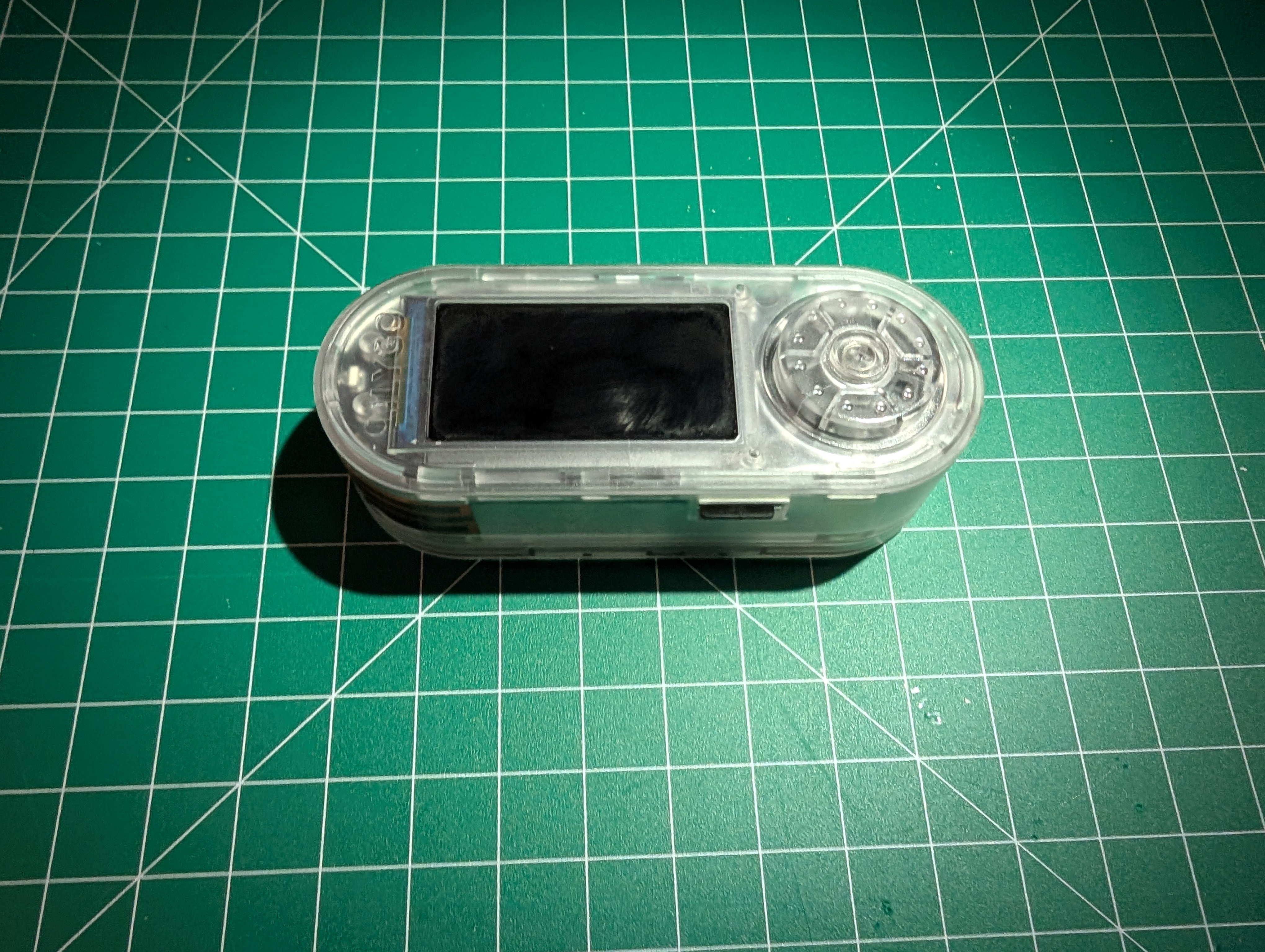

| TEmbed CC1101 | LilyGo-TEmbedC1101.zip |  |

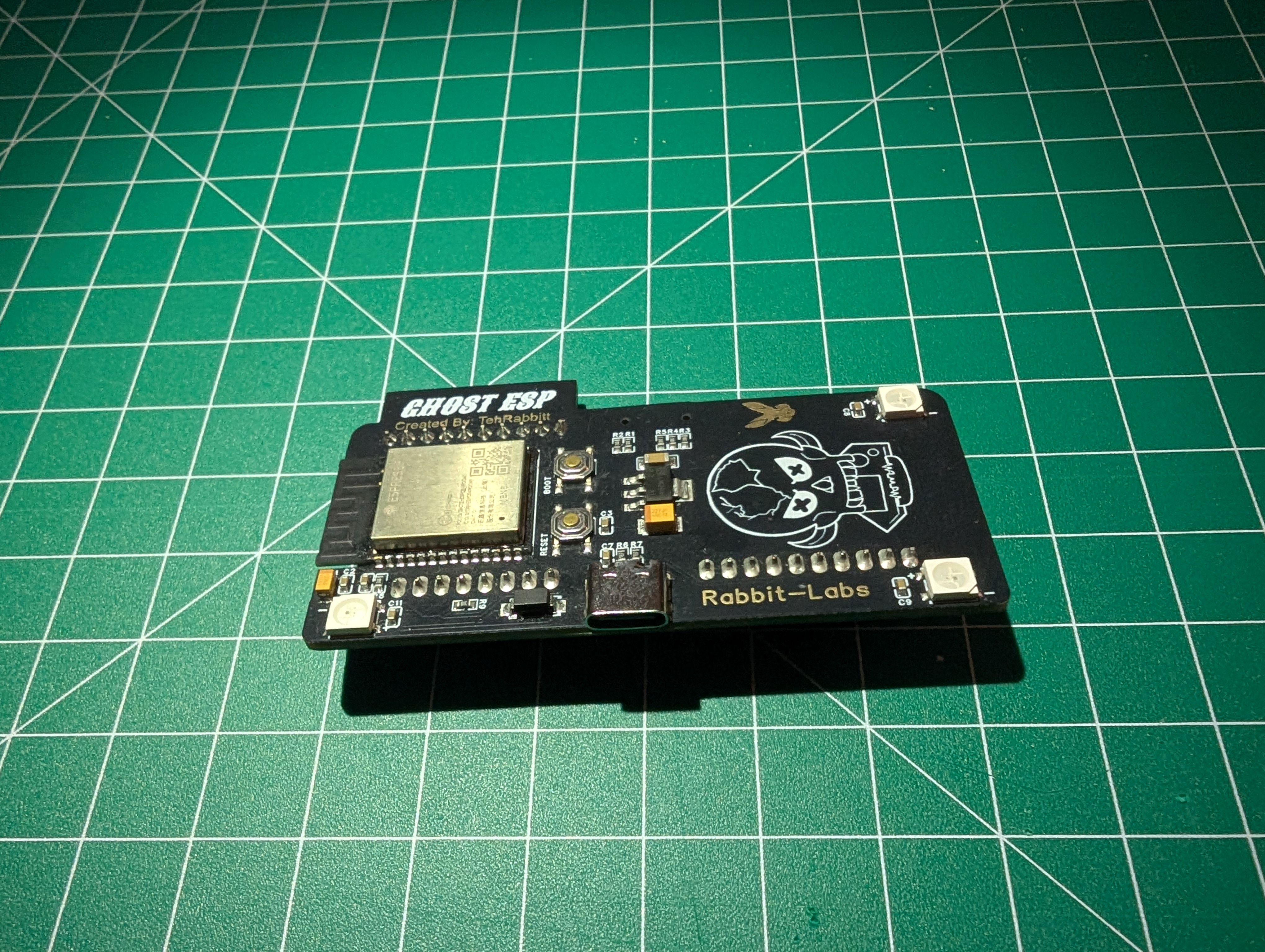

| GhostBoard | ghostboard.zip |  |
| RabbitLabs Poltergeist | Poltergeist.zip | |

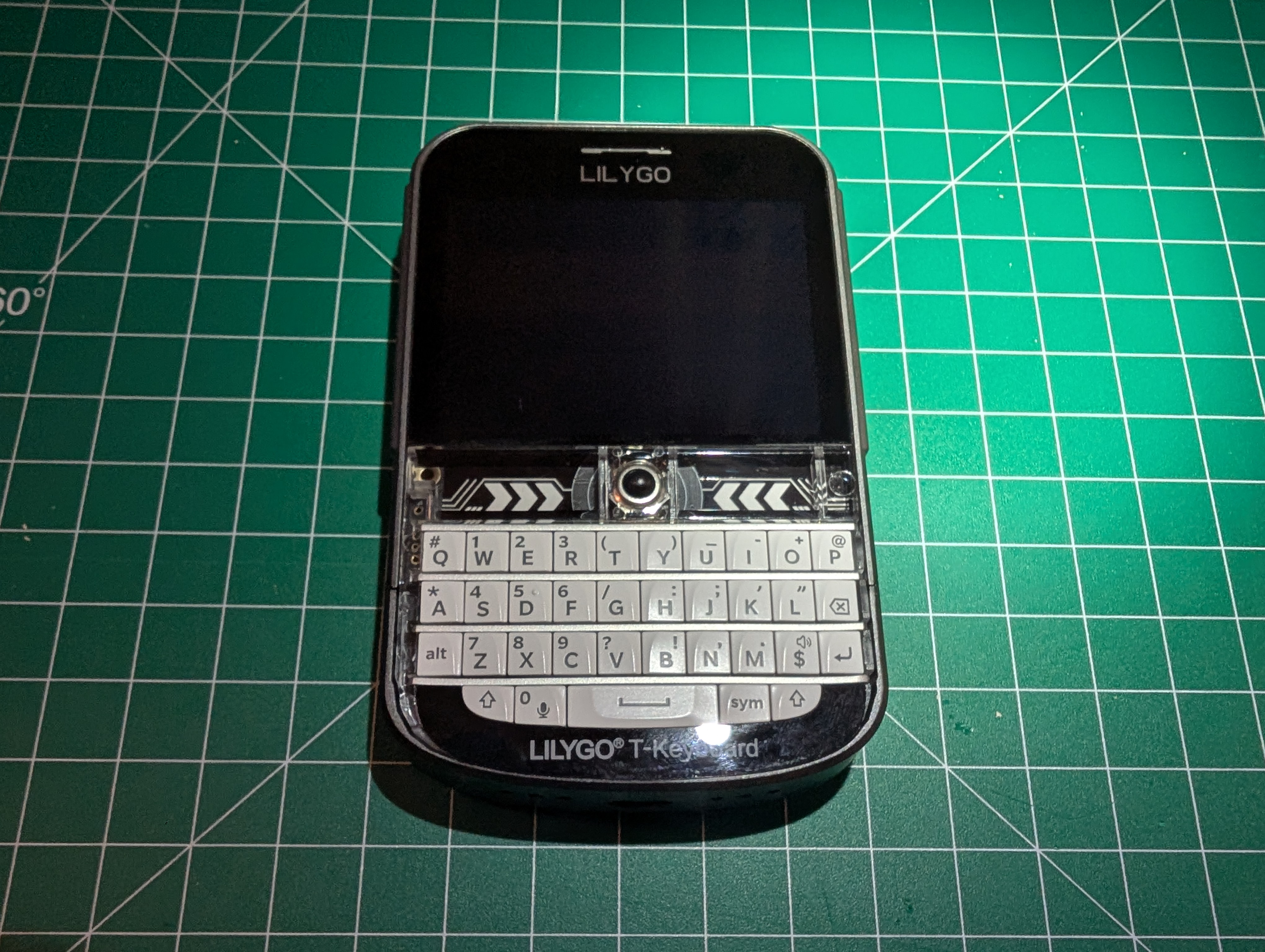

| T-Deck | LilyGo-T-Deck.zip |  |
| JCMK DevBoardPro | JCMK_DevBoardPro.zip | |

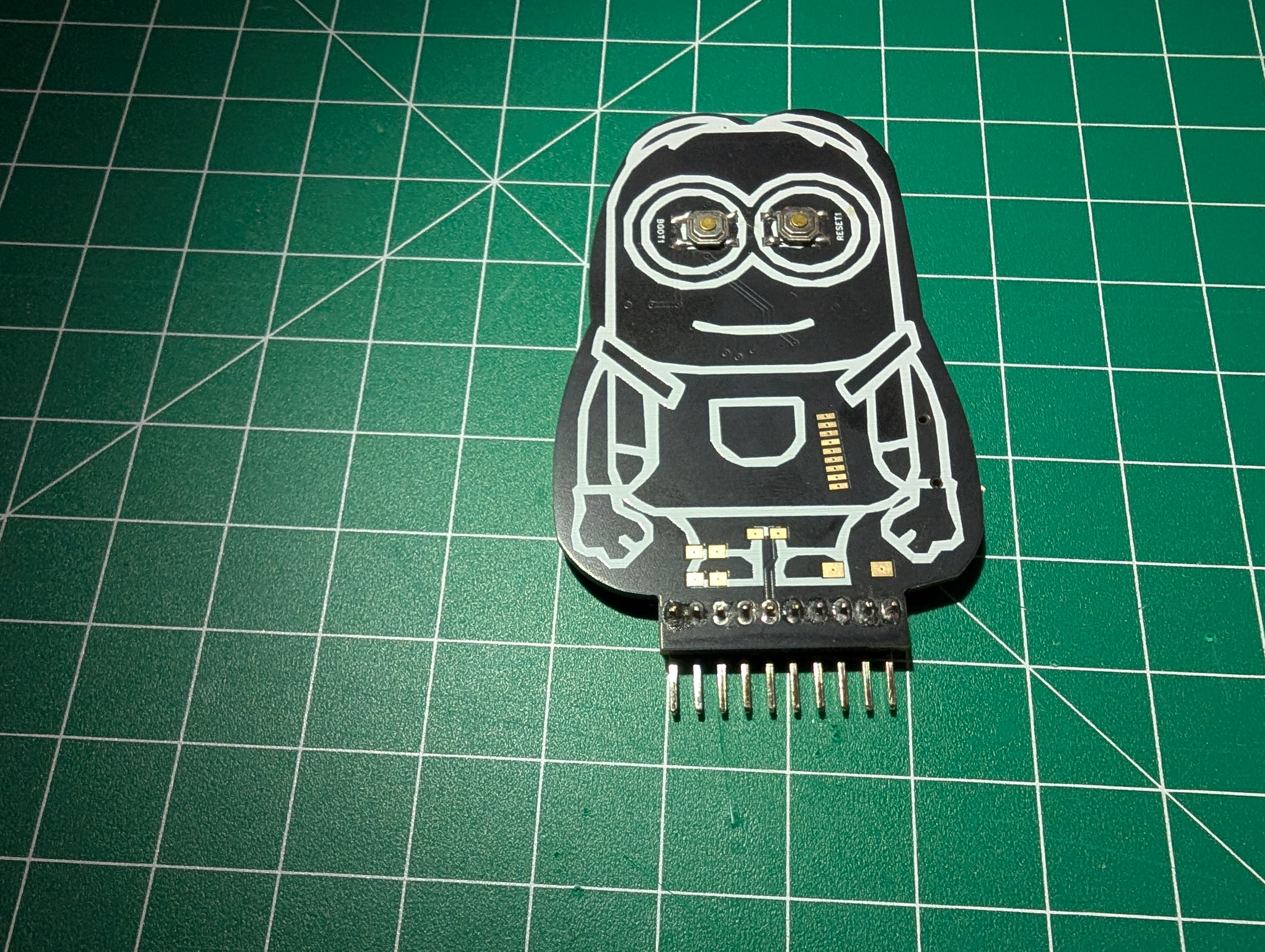

| RabbitLabs Minion | RabbitLabs_Minion.zip |  |

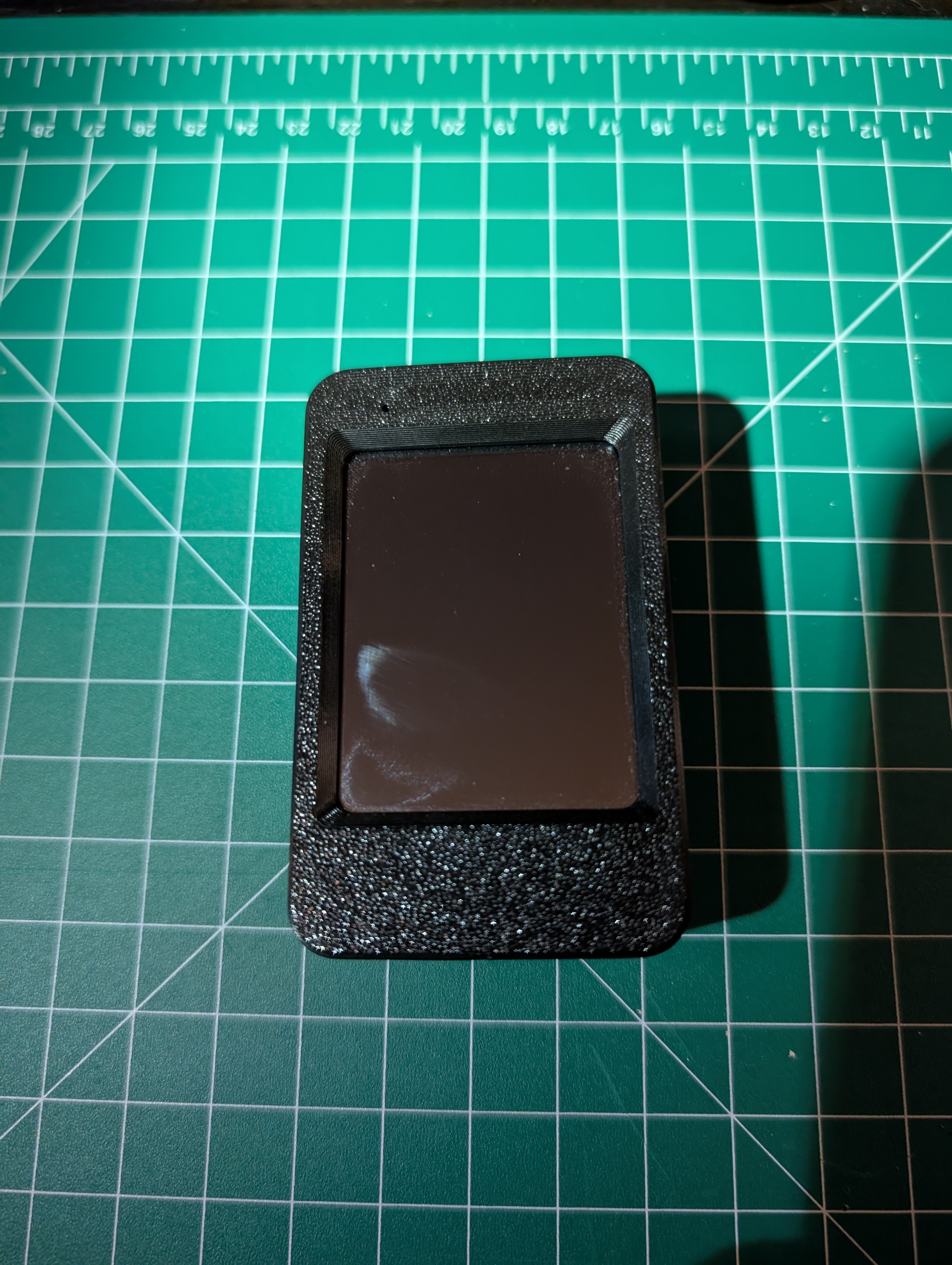

| RabbitLabs Phantom | CYD2USB2.4Inch.zip |  |

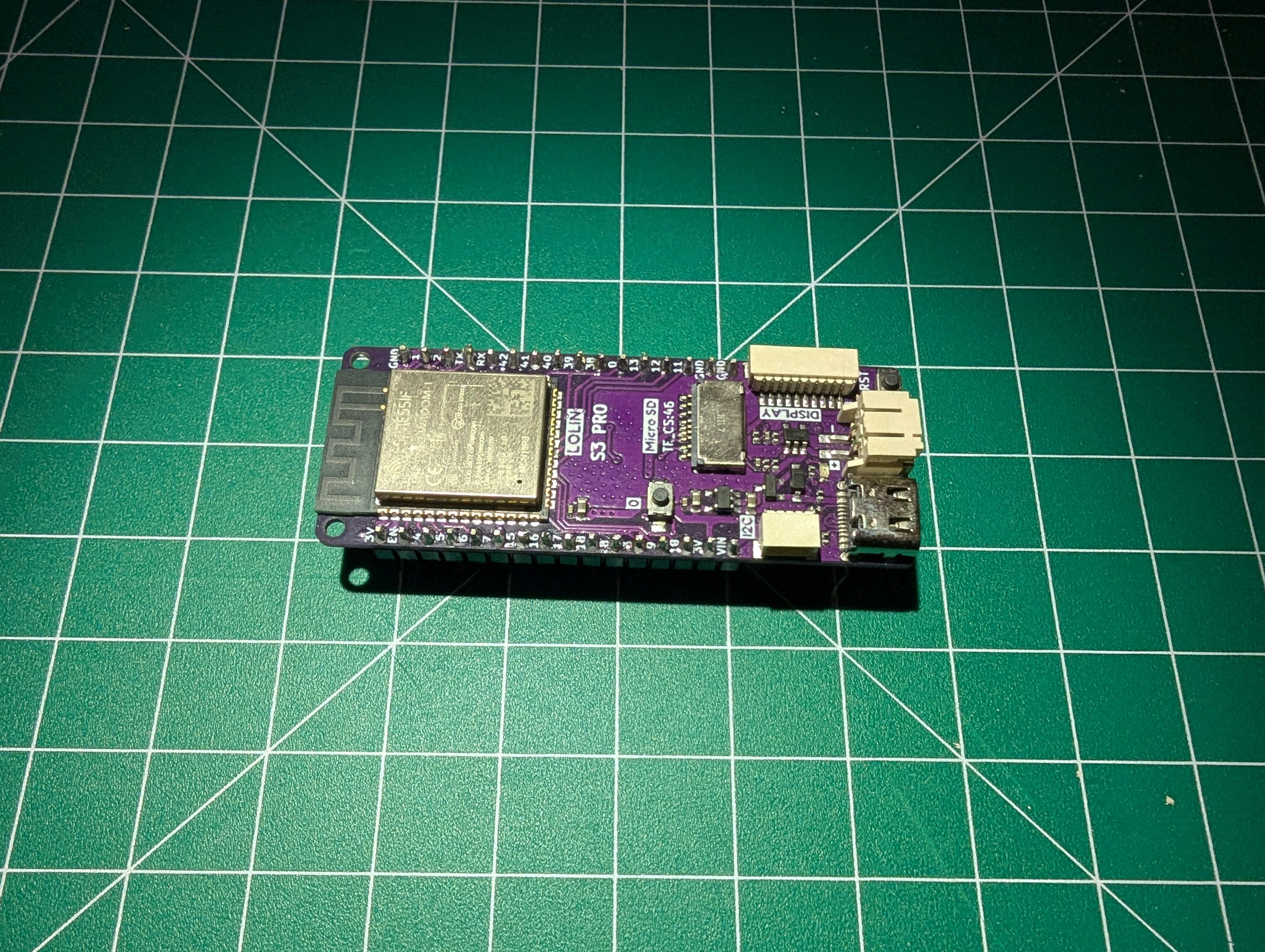

| Lolin S3 Pro | Lolin_S3_Pro.zip |  |
| Seeed Studio XIAO ESP32-S3 Sense | xiao_esp32s3_sense.zip | |
| Seeed Studio XIAO ESP32-C5 | xiao_esp32c5.zip | |

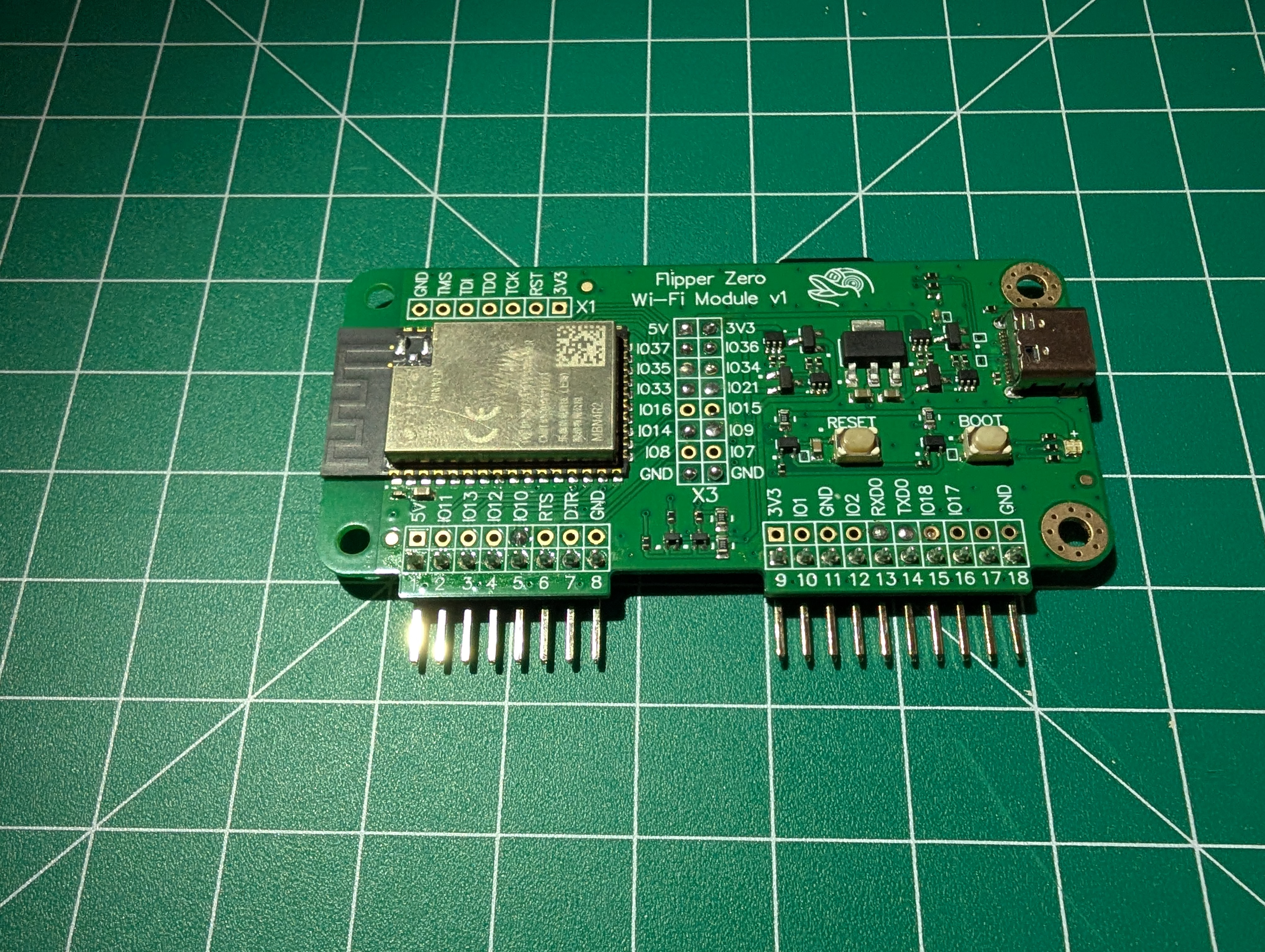

| Flipper JCMK GPS | Flipper_JCMK_GPS.zip |  |
| JC3248W535EN | JC3248W535EN_LCD.zip | |

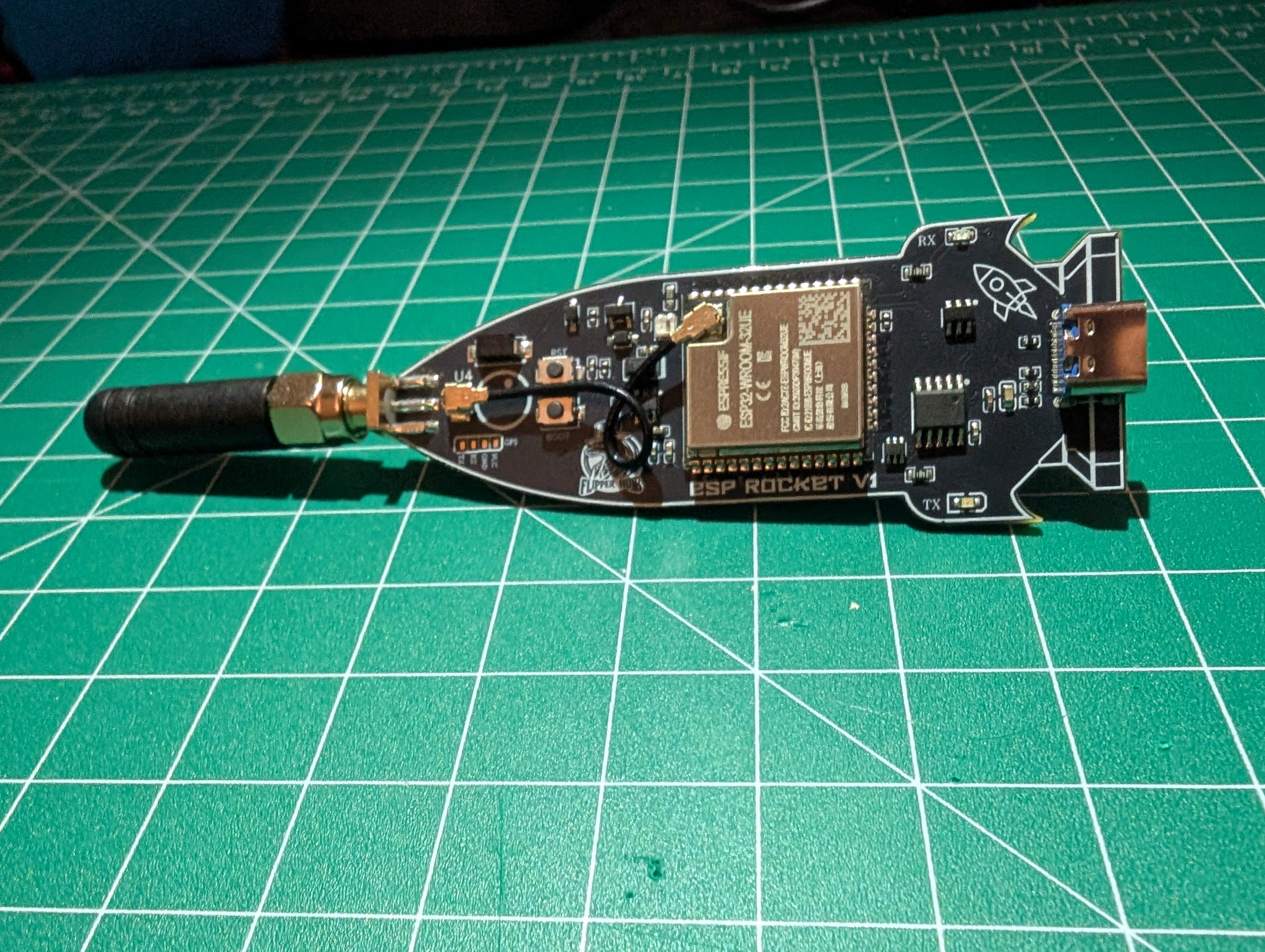

| Wired Hatters ESPRocket | esp32-generic.zip |  |

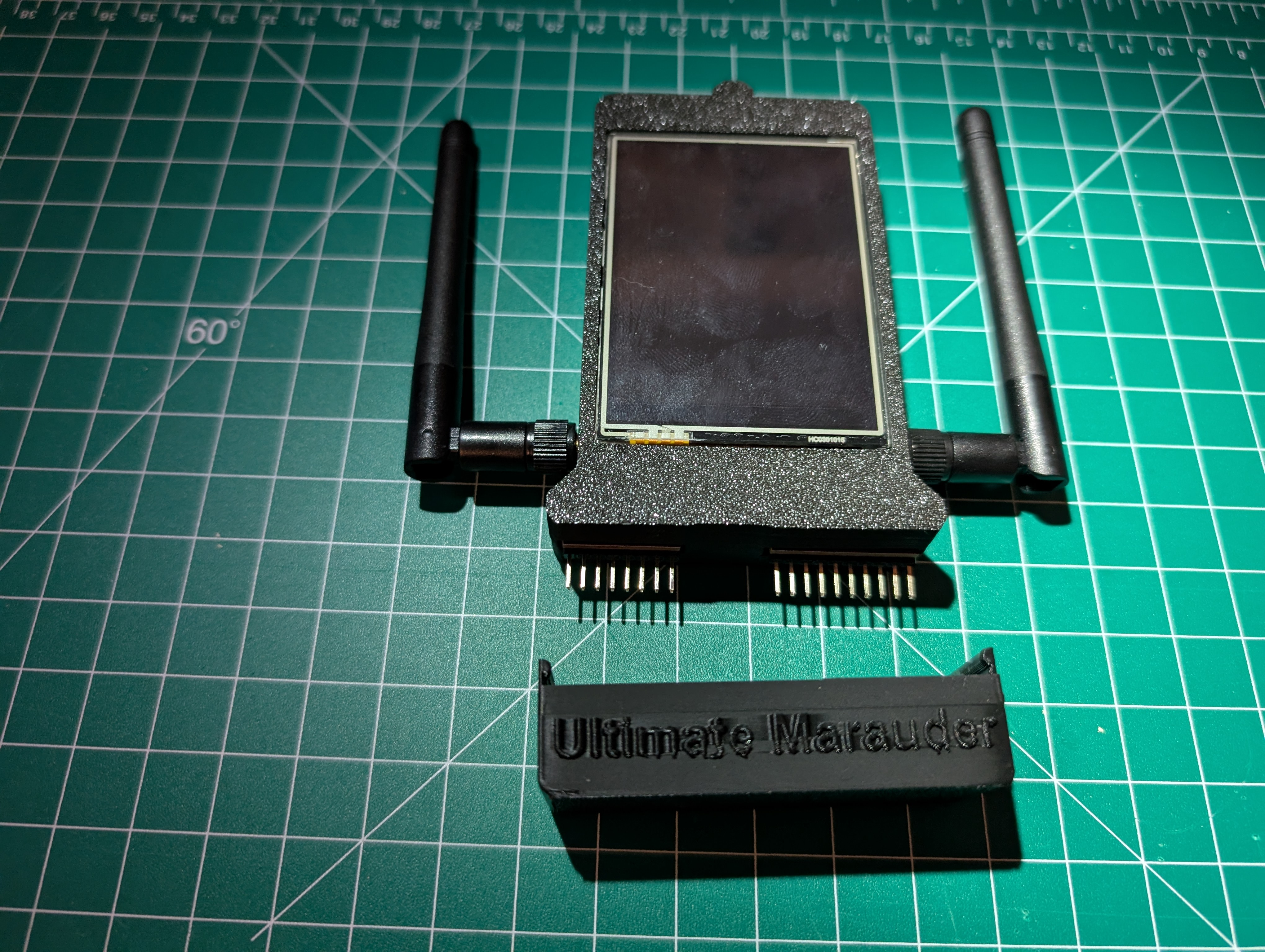

| Wired Hatters Ultimate Marauder | Red Port: esp32-generic.zip and Blue Port: MarauderV4_FlipperHub.zip |  |
| Heltec V3 | heltecv3.zip |
Note: Images are being added as they become available.
